Coin-Up Pinball

Stern Whitestar V2 Modified Pinball CPU / MPU Sound Board 520-5300-00

Stern Whitestar V2 Modified Pinball CPU / MPU Sound Board 520-5300-00

Regular price $979.00 AUD
Regular price Sale price $979.00 AUD
Sale Sold out

This Product is Available from Our Authorised Retailers

Retrocity

RTTB

Retrocity
Location: Australia
Range: Pinball
Ships: Worldwide
Website: Retrocity.com.au
RTBB
Location: Australia
Range: Pinball
Ships: Worldwide
Website: rtbb.com.au

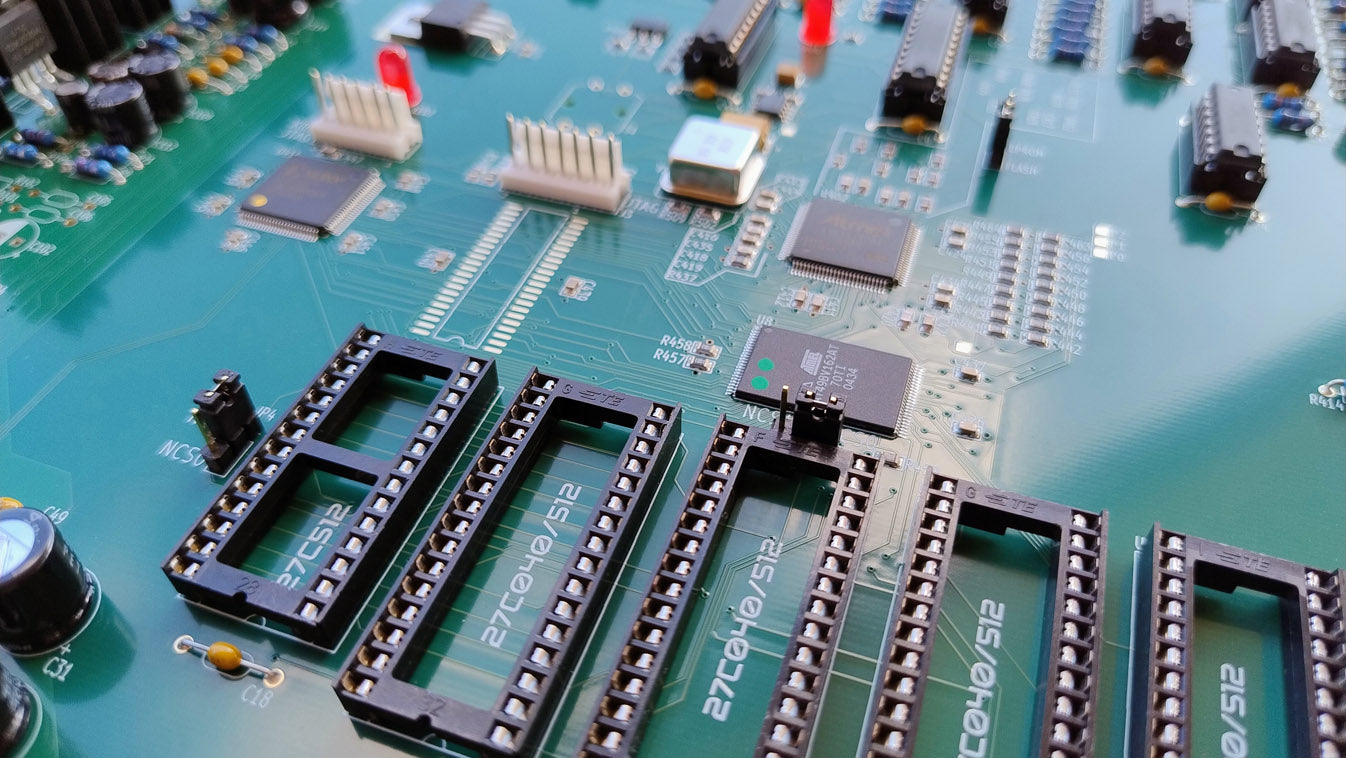

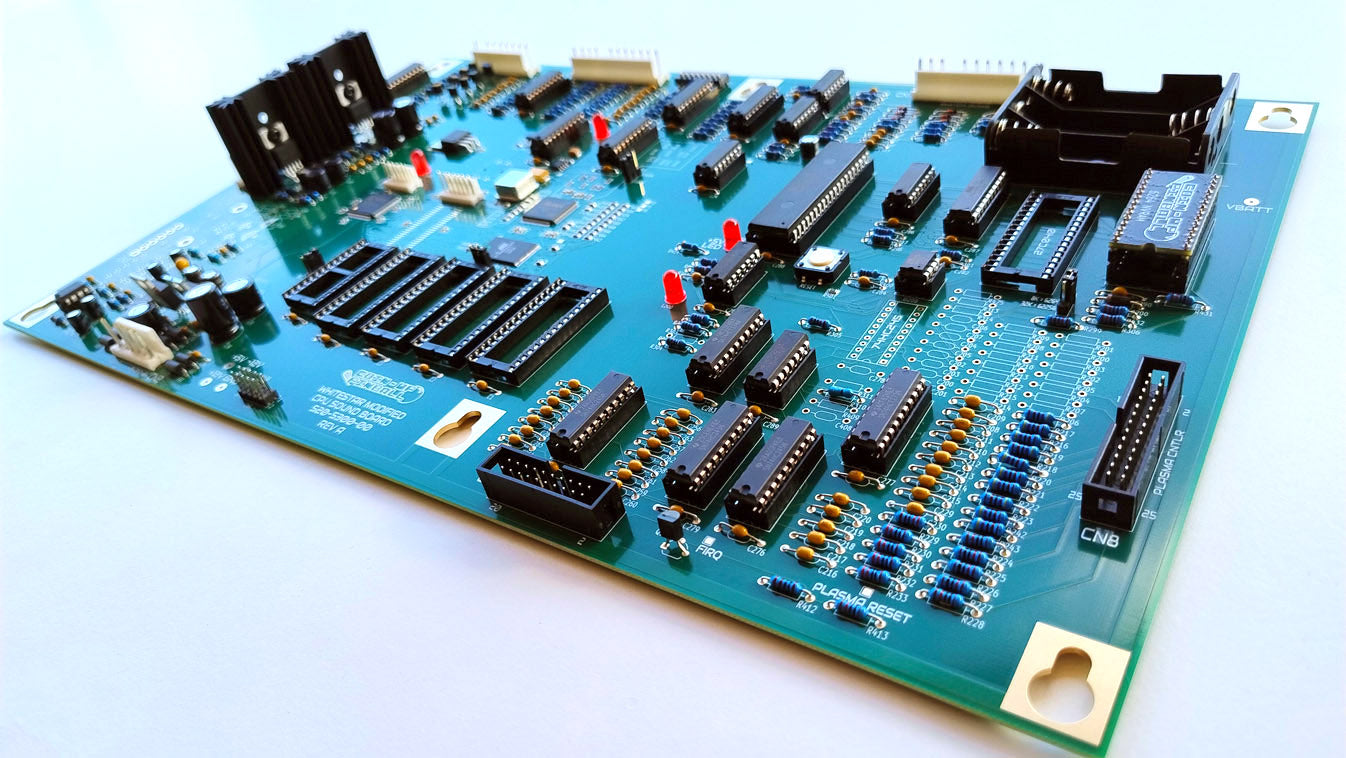

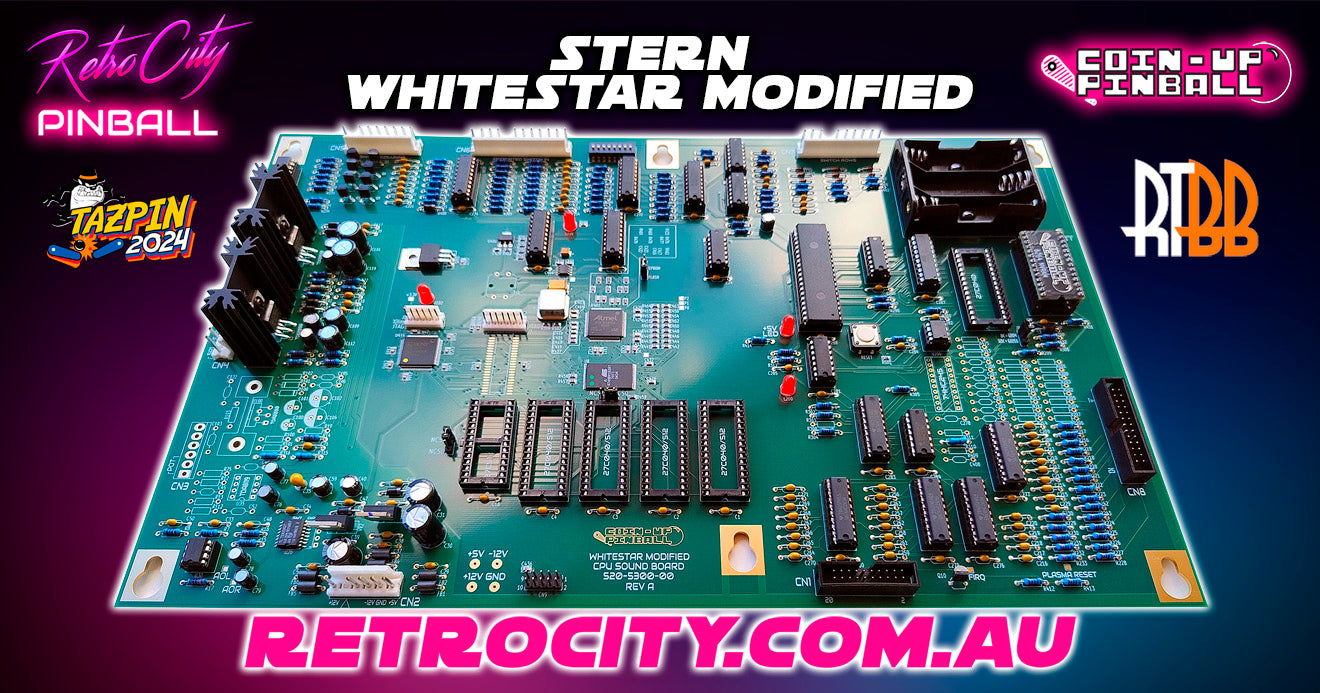

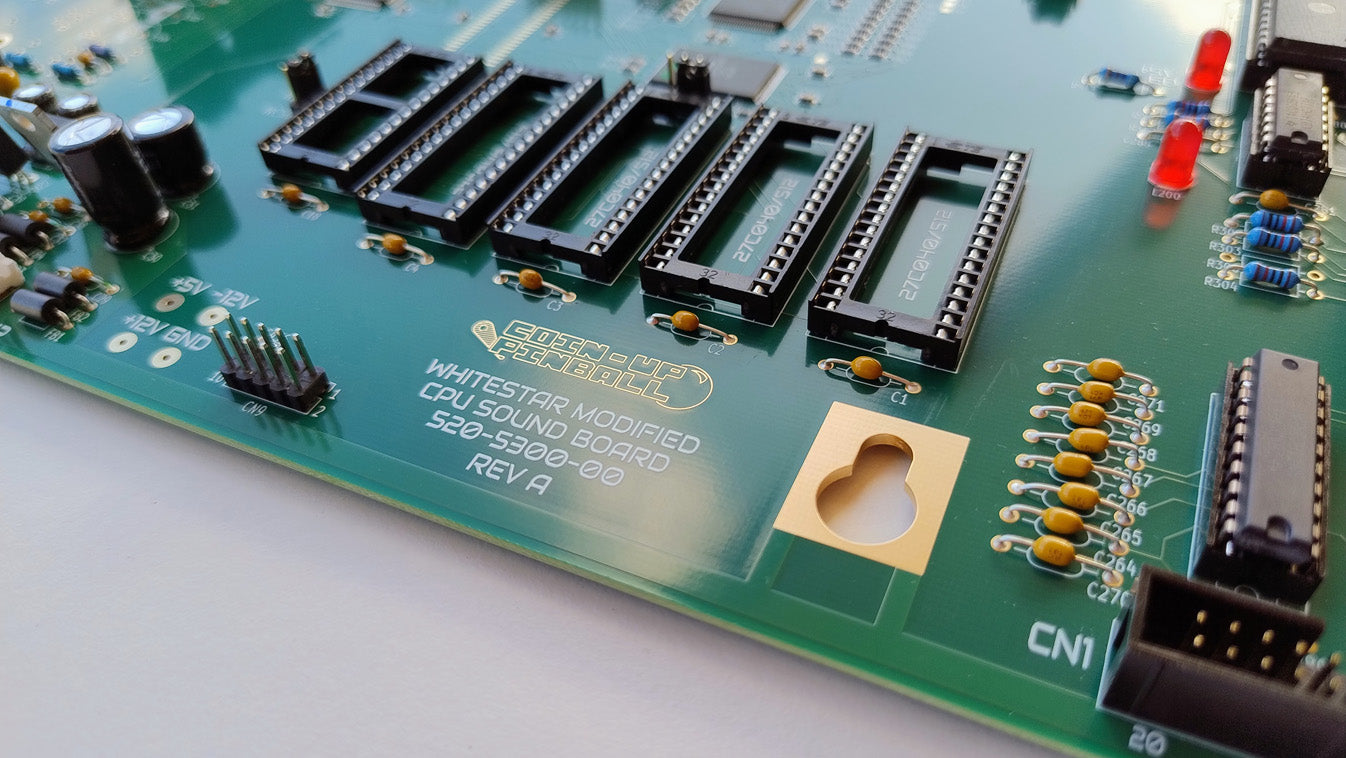

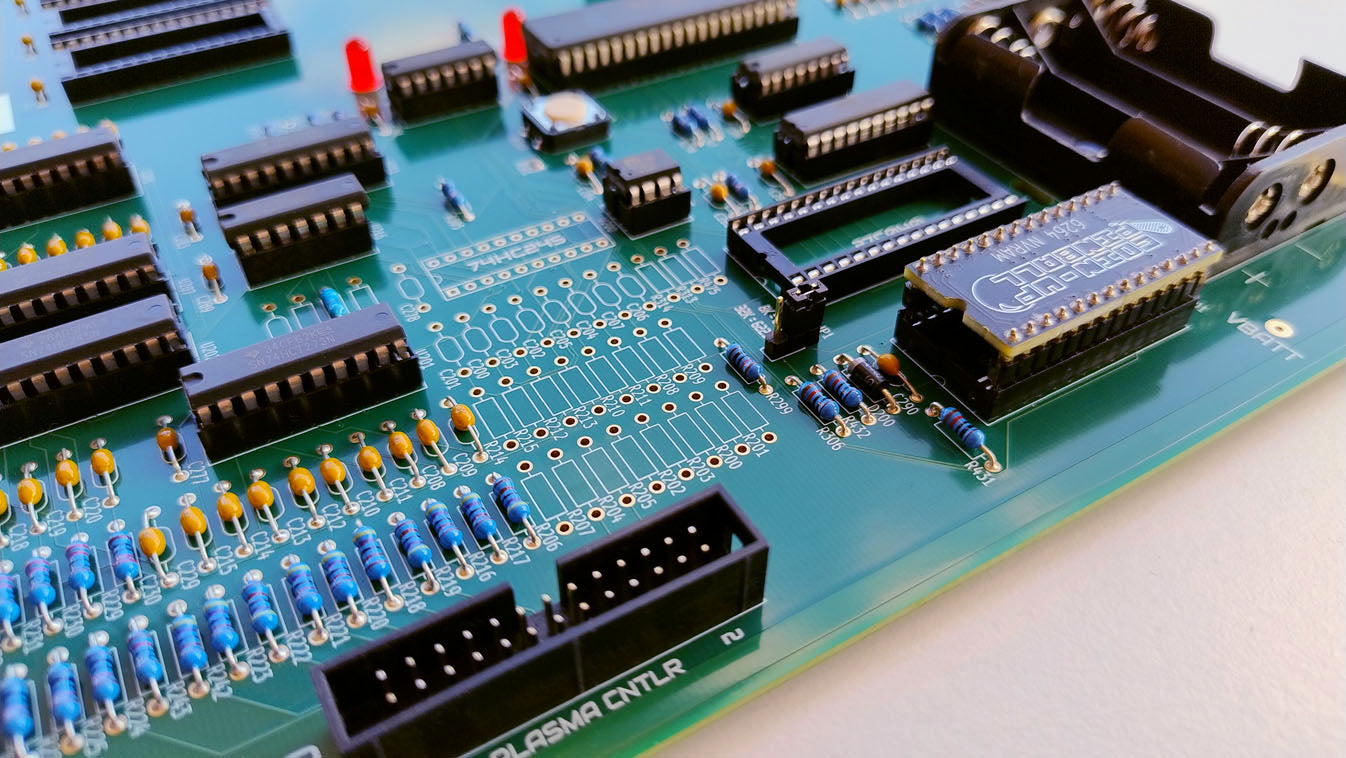

Stern Whitestar V2 Modified Pinball CPU / MPU Sound Board 520-5300-00

Plug and Play direct 1:1 replacement with all features from the original.

Replaces Stern 520-5300-00/XX

This PCB is Version 2 of the Whitestar PCB used in later Whitestar pinball machines. It uses the original Xilinx CPLD, Atmel AT91 ARM based CPU and original Atmel 49BV NV CMOS Flash (flash has been upgraded to the higher temp, industrial version).

- 4 Layer PCB, improving signal integrity whilst reducing EMI
- High quality gold plated vias and pads
- Genuine Xilinx, Atmel CPU and Flash RAM
- NVRAM Included (No Need For Batteries)
- Added Test Points (5V, +12V, -12V, GND)
- High Quality Components
We only use genuine components from reputable companies,
(ST, Onsemi, Molex, Nichicon, TE Connectivity, Vishay, Yageo etc)
- Every Chip Socketed for Easy Repair (All sockets are TE Connectivity)
- Shrouded IDC Ribbon Cable Headers
- True to Original (Original Schematics Can Be Used)
- Supports Every Single Game as the Original
- 12 Months Local Warranty
- Designed & Assembled in Australia

Game Compatibility:

Lord of the Rings (Including Limited Edition)*
The Simpsons Pinball Party
The Sopranos
Ripley’s Believe It Or Not
Elvis (Including Gold)
NASCAR
Grand Prix
Dale Jr

* Lord of the Rings Limited Edition will require a different PAL at U213.

If you are purchasing this board for Lord of the Rings Limited Edition, please notify us, as the default PAL included will not work. We will include the correct PAL.
